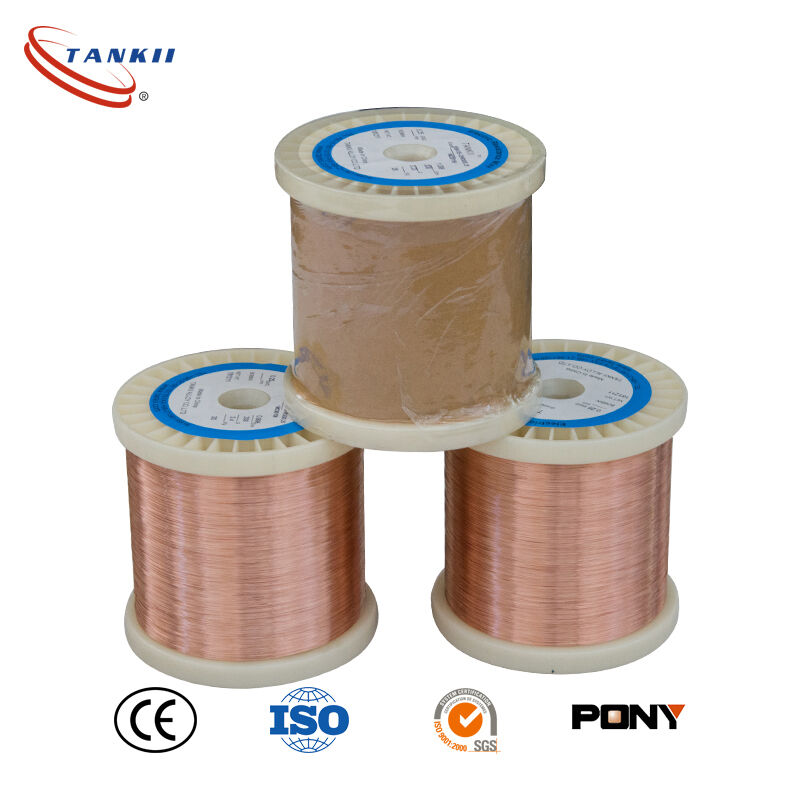

6J12 Precision Manganin 47 Resistance Wire Excellent Long Term Stability for Standard Resistor & Metrology Measuring Instruments

Λεπτομέρειες προϊόντων

Τόπος καταγωγής: Κίνα

Μάρκα: Tankii

Πιστοποίηση: ISO 9001

Αριθμό μοντέλου: μαγγανίνη 47

Όροι πληρωμής & ναυτιλίας

Ποσότητα παραγγελίας min: 30 κιλά

Τιμή: negotiate

Συσκευασία λεπτομέρειες: Χαρτοκιβώτιο

Χρόνος παράδοσης: 2-3 εβδομάδες

Δυνατότητα προσφοράς: 5000 τόνοι ετησίως

Πάρτε την καλύτερη τιμή
Επικοινωνήστε τώρα
Προδιαγραφές
Επισημαίνω:
Υλικό:
μαγγανίνη 47
Μοντέλο:
6J12
Σχήμα:
σύρμα/λωρίδα/αλουμινόχαρτο
Πυκνότητα:
8.4g/cm3
Μελαγχολία:
47μΩ/cm
Επιμήκυνση:
≥15%
ΔΕΠ:
-3-+20(*10^﹣6/℃)
EMF έναντι Cu μV/℃:
≤1
Υλικό:
μαγγανίνη 47
Μοντέλο:
6J12
Σχήμα:
σύρμα/λωρίδα/αλουμινόχαρτο
Πυκνότητα:
8.4g/cm3
Μελαγχολία:
47μΩ/cm
Επιμήκυνση:
≥15%
ΔΕΠ:
-3-+20(*10^﹣6/℃)
EMF έναντι Cu μV/℃:
≤1
Περιγραφή
6J12 Precision Manganin 47 Resistance Wire Excellent Long Term Stability for Standard Resistor & Metrology Measuring Instruments
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire

Chemical Content, %
Ni Mn Fe Si Cu Other RoHS Directive
CD Pb Hg Cr
- 10.5-12.5 - - Bal - ND ND ND ND

Mechanical Properties
Max Continuous Service Temp 0-45ºC
Resisivity at 20ºC 0.49±0.03ohm mm2/m
Density 8.g/cm3
Temp Coefficient of Resistance at 20 ºC -80~+80α×10-6/ºC
Melting Point 1450ºC
Tensile Strength(Hard) 635 MPa(min)
Tensile Strength,N/mm2   Annealed,Soft 340~535
Elongation 15%(min)
EMF vs Cu, μV/ºC (0~100ºC) 2
Micrographic Structure Austenite
Magnetic Property Non
Micrographic Structure Ferrite
Magnetic Property Magnetic
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
